HFMD 2023

1 Epidemiological Analysis

Code

library(readxl)
library(tidyverse)
library(gtsummary)
library(patchwork)
invisible(Sys.setlocale("LC_TIME", "English"))

Code

df1 <- read_excel("D:/OUCRU/hfmd/data/TCM_full.xlsx",
    col_types = c("date", "numeric", "text",
        "text", "text", "date", "date", "date",
        "text", "text", "text"))
colnames(df1) <- c("dob", "age", "gender", "commune", "district",
                  "reported_date", "onset_date","adm_date",
                  "medi_cen","inout","severity")
df1$dob <- df1$dob %>% as_date()
df1$adm_date <- df1$adm_date %>% as_date()

df1$age1 <- interval(df1$dob, df1$adm_date) / years(1)
df1$adm_week <- as.Date(floor_date(df1$adm_date, "week"))
df1$district <- df1$district %>% str_replace_all(
          c( "Quận Gò vấp"  = "Quận Gò Vấp"))
df1$district <- df1$district %>%
  str_remove("Quận|Huyện|Thành phố") %>%
  trimws(which = "both")

1.1 Data description

Code

df1$gender <- df1$gender %>% str_replace_all(
  c( "nam|NAM|Nam"  = "Male",
     "nữ|NỮ|Nữ"  = "Female"))

df1$inout <- df1$inout %>% str_replace_all(
  c( "Chuyển viện"  = "Transfer",
     "Điều trị nội trú"  = "Inpatient",
     "Điều trị ngoại trú"  = "Outpatient",
     "Ra viện" = "Discharge",
     "Tình trạng khác" = "Others",
     "Tử vong" = "Death"
     ))

df1 %>% mutate(year = year(adm_date)) %>%
  tbl_summary(by = year,
              label = c(age1 ~ "Age",
                        gender ~ "Gender"),
              statistic = list(
                age1 ~ "{median} ({p5}, {p95})",
                c(gender) ~ c( "{n} ({p}%)")
              ),
              missing = "no",
              include = c(age1,gender))  %>%
  bold_labels()

Characteristic	2013 N = 8,0781	2014 N = 10,0431	2015 N = 8,7291	2016 N = 5,7401	2017 N = 30,8251	2018 N = 39,3521	2019 N = 28,4861	2020 N = 16,3981	2021 N = 9,7721	2022 N = 19,1651	2023 N = 43,3801	2024 N = 7,3971
Age	NA (NA, NA)	NA (NA, NA)	NA (NA, NA)	NA (NA, NA)	1.84 (0.69, 5.06)	1.95 (0.69, 5.68)	1.85 (0.66, 5.44)	1.83 (0.71, 5.02)	2.21 (0.74, 5.45)	2.25 (0.78, 5.50)	2.54 (0.79, 6.04)	2.35 (0.69, 5.95)
Gender
Female	3,159 (39%)	4,070 (41%)	3,617 (41%)	2,391 (42%)	12,982 (42%)	16,815 (43%)	12,196 (43%)	6,944 (42%)	4,123 (42%)	7,950 (41%)	18,461 (43%)	3,121 (42%)
Male	4,919 (61%)	5,973 (59%)	5,112 (59%)	3,349 (58%)	17,843 (58%)	22,537 (57%)	16,290 (57%)	9,454 (58%)	5,649 (58%)	11,215 (59%)	24,919 (57%)	4,276 (58%)
1 Median (5% Centile, 95% Centile); n (%)

1.2 Location

Code

spa_df <- df1[,c("district","adm_date","adm_week")] %>% na.omit()

spa_df$day <- day(spa_df$adm_date)
spa_df$month <- month(spa_df$adm_date)
spa_df$year <- year(spa_df$adm_date)

qhage <- spa_df %>%
  filter(year == 2023) %>% group_by(year,month,day) %>%
  count(district) %>%
  mutate(datetime = lubridate::make_datetime(2023, month,day)) %>%
  ggplot(aes(x = datetime, y = n)) + geom_line() +
  scale_x_datetime(breaks = lubridate::make_datetime(2023,1:12),labels = month.abb)+
  facet_wrap(~district,
             ncol = 5)+
  theme_bw()+
  xlab("Addmission date (day)")+
  ylab("Cases")+
  ylim(0,50)+
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1,size = 10),
        axis.text.y = element_text(size = 15),
        axis.title.x = element_text(size = 15),
        axis.title.y = element_text(size = 15),
        strip.text.x = element_text(size = 15))

Code

qhage

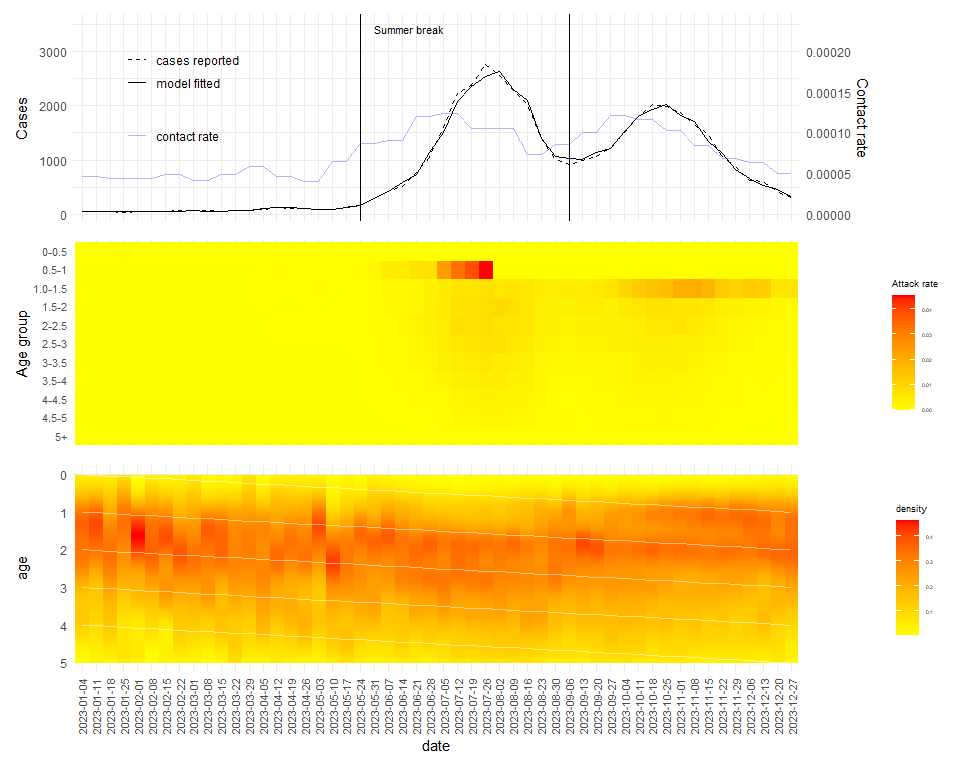

1.3 Age structure

Code

df23 <- df1 %>% filter(year(adm_date) == "2023") %>%
  filter(!is.na(adm_date) & !is.na(dob))

# df23 <- df23[,c("adm_date","age1")]

df23 <- df23[,c("adm_week","age1")]

df23$agr <- cut(df23$age1, breaks = c(0, 1, 2, 3, 4,5,6,Inf), right = F)
df23$agr <- factor(df23$agr, labels = c("[0-1)", "[1-2)", "[2-3)",
                                        "[3-4)","[4-5)","[5-6)","6+"))

Code

df23 |>
  filter(!is.na(adm_week), !is.na(agr)) |>
  count(adm_week, agr) |>
  group_by(adm_week) |>
  mutate(prop = n / sum(n)) |>
  data.frame() %>%
  ggplot(aes(x = adm_week,y=prop)) +
  geom_bar(stat = "identity")+
  facet_wrap(vars(agr))+
  theme_bw()+
  labs(x = "Admission week",y= "Percentage (%)")+
  theme(axis.text.x = element_text(size = 6),
        axis.text.y = element_text(size = 6),
        axis.title.x = element_text(size = 6),
        axis.title.y = element_text(size = 6))

Code

## sliding window function
slide_age <- function(time1,age1,w1,s1){
  df1 <- data.frame(time1,age1) %>%                   ## line listing data frame
    filter(!is.na(time1) & !is.na(age1)) %>%
    arrange(time1)

  a_df1 <- df1 %>% count(time1)                      ## aggregate data frame

  total1 <- nrow(a_df1)
  spots1 <- seq(from = 1, to = (total1 - w1 + 1), by = s1)

  out_total <- data.frame()

  for (i in 1:length(spots1)){
    range1 <- data.frame(a_df1[spots1[i]:(spots1[i] + w1 - 1),1])
    result1 <- df1$age1[df1$time1 >= range1[1,] & df1$time1 <= range1[w1,]]
    out <- data.frame(date = rep(as.character(range1[ceiling(w1/2),]),length(result1)),
                      age = result1)
    out <- out[order(out$age),]
    out_total <- rbind(out_total,out)
  }
  output <- list()
  output$wdat <- out_total
  output$adat <- out_total %>% count(date)
  output$parms <- data.frame(w = w1,s =s1)
  return(output)
}


case_noti <- function(timee, agee,lab = FALSE){

  dat <- data.frame(timee,agee) %>%
    filter(!is.na(timee) & !is.na(agee)) %>%
    count(timee)

  ts <- ggplot(dat, aes(x =timee, y = n)) +
    geom_bar(stat = "identity") +
    labs(y = "Cases") +
    theme_minimal()

  if(lab == TRUE){
    ts
  } else {
    ts + theme(axis.title.x = element_blank(),
          axis.text.x = element_blank(),
          axis.ticks.x = element_blank())
  }

}

## plot

co <- data.frame()

for (i in 0:6){
  gen <- seq(0,1,le=52) + i
  co <- rbind(co,gen)
}


df23 <- df1 %>% filter(year(adm_date) == 2023)
wwww <- slide_age(time1 = df23$adm_date,
                  age1 =  df23$age1,
                  w1 = 7, s1=7)

ch <- data.frame(date = wwww$adat$date,
           c0 = as.numeric(co[1,]),
           c1 = as.numeric(co[2,]),
           c2 = as.numeric(co[3,]),
           c3 = as.numeric(co[4,]),
           c4 = as.numeric(co[5,]),
           c5 = as.numeric(co[6,]))

tshm <- function(model,agelim) {
  ts <- case_noti(model$wdat$date,model$wdat$age)
  hm <- ggplot(data=model$wdat, aes(x=date, y=age)) +
    stat_density(
      aes(fill = after_stat(density)),
      geom = "raster",
      position = "identity"
    )+
    scale_fill_gradient(low="yellow", high="red")+
    theme_minimal()+
    scale_y_reverse(lim= rev(agelim),breaks = seq(0,6))+
    # scale_x_discrete(guide = guide_axis(n.dodge = 2))+
    theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1,size = 8))+
  geom_line(data = ch,aes(x = date,y = c0),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c1),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c2),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c3),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c4),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c5),col = "white",
            group = 1,lwd = 0.25,alpha = 0.5)
  ts/hm
}

Code

tshm(wwww,c(0,6))

1.4 tSIR model

Code

library(tidyverse)
library(lubridate)
library(readxl)
library(mgcv)
library(patchwork)
library(odin)
library(tsiR)
library(janitor)

Code

count_dangky_week <- readRDS("D:/OUCRU/hfmd/data/count_dangky_week.rds")
child <- count_dangky_week %>% filter(birth_year >= 2017) %>% group_by(birth_week, birth_year) %>%
  summarise(n=sum(n)) %>% arrange(birth_year)
colnames(child) <- c("week","year","birth")
## combine week 52 and 53

child$week <- ifelse(child$week == 53,52,child$week)

child <- child %>% group_by(year) %>%
  mutate(newn = ifelse(week == 52, sum(birth[week==52]), birth)) %>%
  {data.frame(.$week, .$year, .$newn )} %>% unique() %>%
  magrittr::set_colnames(c("week","year","birth"))

child$week2 <- seq(1:length(child$week))

time <- data.frame()

for (i in 2017:2022){
  range <- child$week[child$year == i]
  if (length(range) == 52){
  time_add <- seq.int(i + 7/365 ,(i+1) - 7/365,
                                 length.out = length(range)) %>% data.frame()
  } else {
  time_add <- seq.int(i + 7/365 ,(i+1) - 7/365,
                                   length.out = 52)[1:length(range)] %>% data.frame()
  }
  time <- rbind(time,time_add)
}


child[,5] <- time %>%
  magrittr::set_colnames(c("time"))

## model fitting
fit <- mgcv::gam(birth ~ s(week) + s(week2),method = "REML",data = child)

Code

cutpoint <- function(point){
  fitt <- mgcv::gam(birth ~ s(week) + s(week2),
                    method = "REML",data = child[-c(point:nrow(child)),])

  new_data2 <- data.frame(week = rep(1:52,7))

  new_data2$week2 <- seq(1,nrow(new_data2))
  new_data2$year <- rep(2017:2023,each = 52)

  time <- data.frame()
  for (i in 2017:2023){
    range <- new_data2$week[new_data2$year == i]
    time_add <- data.frame(seq.int(i + 7/365 ,(i+1) - 7/365,
                                   length.out = length(range)))
    time <- rbind(time,time_add)
  }

  new_data2[4] <- time %>%
    magrittr::set_colnames(c("time"))

  est2 <- predict.gam(fitt,newdata = new_data2,
                      type="response",se.fit = TRUE)

  new_data2 <- new_data2 %>% mutate(
    fit = est2$fit,
    lwr = est2$fit - qt(0.95,nrow(new_data2))*est2$se.fit,
    upr = est2$fit + qt(0.95,nrow(new_data2))*est2$se.fit,
  )
  out <- list()
  out$point <- point
  out$df <- new_data2
  return(out)
}


plot_cp <- function(model){
  dta <- model$df
  ggplot(data = dta) +
    geom_line(aes(x = time,y = fit),col = "blue")+
    geom_ribbon(aes(x = time,ymin = lwr, ymax = upr), fill = "royalblue",alpha = 0.4)+
    geom_vline(xintercept = dta$time[dta$week2 == model$point])+
    ylab("births")+
    theme_minimal()
}

Code

model <- cutpoint(270)

plot_cp(model)+
  geom_point(data = child[1:270,], aes(x = time, y = birth))+
  annotate("text", x= 2017, y=3500, label= "Fitting") +
  annotate("text", x = 2023.5, y=3500, label = "Estimation")+
  plot_annotation(
    title = "Fitting data until week 10/2022"
  )

Code

hfmd1723 <- df1 %>% filter(year(adm_week) >= "2017" & year(adm_week) <= "2023") %>%
    filter(!is.na(adm_week) ) %>%
    count(adm_week)


agr17 <- hfmd1723 %>% filter(year(adm_week) == "2017") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week)) %>% as.data.frame()

agr17$week <- ifelse(agr17$week == 53,52,agr17$week)

d17 <- agr17 %>% mutate(newn = ifelse(week == 52, sum(n[week==52]), n),
                        year = year(adm_week)) %>%
  {data.frame(.$week, .$year, .$newn )} %>% unique() %>%
  magrittr::set_colnames(c("week","year","cases"))

## 18

d18 <- hfmd1723 %>% filter(year(adm_week) == "2018") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week),
                                       year = year(adm_week)) %>%
  as.data.frame() %>% select(week,year,n) %>%
  magrittr::set_colnames(c("week","year","cases"))

## 19
d19 <- hfmd1723 %>% filter(year(adm_week) == "2019") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week),
                                       year = year(adm_week)) %>%
  as.data.frame() %>% select(week,year,n) %>%
  magrittr::set_colnames(c("week","year","cases"))

## 20
d20 <- hfmd1723 %>% filter(year(adm_week) == "2020") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week),
                                       year = year(adm_week)) %>%
  as.data.frame() %>% select(week,year,n) %>%
  magrittr::set_colnames(c("week","year","cases"))

## 21
d21 <- hfmd1723 %>% filter(year(adm_week) == "2021") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week),
                                       year = year(adm_week)) %>%
  as.data.frame() %>% select(week,year,n) %>%
  magrittr::set_colnames(c("week","year","cases"))

## 22
d22 <- hfmd1723 %>% filter(year(adm_week) == "2022") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week),
                                       year = year(adm_week)) %>%
  as.data.frame() %>% select(week,year,n) %>%
  magrittr::set_colnames(c("week","year","cases"))

## 23
agr23 <- hfmd1723 %>% filter(year(adm_week) == "2023") %>%
  filter(!is.na(adm_week) ) %>% mutate(week = 1:length(adm_week)) %>% as.data.frame()

agr23$week <- ifelse(agr23$week == 53,52,agr23$week)

d23 <- agr23 %>% mutate(newn = ifelse(week == 52, sum(n[week==52]), n),
                        year = year(adm_week)) %>%
  {data.frame(.$week, .$year, .$newn )} %>% unique() %>%
  magrittr::set_colnames(c("week","year","cases"))


cases1723 <- rbind(d17,d18,d19,d20,d21,d22,d23)

Code

birth1723 <- model$df %>%
  select(week,year,fit)

hcm1723 <- left_join(cases1723,birth1723, by = c("week" = "week","year" = "year"))

time <- data.frame()

for (i in 2017:2023){
  range <- hcm1723$week[hcm1723$year == i]
  if (length(range) == 52){
    time_add <- seq.int(i + 7/365 ,(i+1) - 7/365,
                        length.out = length(range)) %>% data.frame()
  } else {
    time_add <- seq.int(i + 7/365 ,(i+1) - 7/365,
                        length.out = 52)[1:length(range)] %>% data.frame()
  }
  time <- rbind(time,time_add)
}

hcm1723[,5] <- time %>%
  magrittr::set_colnames(c("time"))

hcm1723 <- hcm1723 %>% select(time,cases,fit) %>%
  magrittr::set_colnames(c("time","cases","births"))

Code

generator <- odin::odin({
  deriv(N) <- r * N * (1 - N / K)
  initial(N) <- N0

  N0 <- user(1)
  K <- user(100)
  r <- user()
})

Code

mod2 <- generator$new(N0 = 8446000,r = 7.4/52,K= 9456700)
y1723 <- mod2$run(1:360)

Code

hcm1723 <- cbind(hcm1723,y1723)
colnames(hcm1723) <- c("time","cases","births","t","pop")
hcm_hfmd1723 <- runtsir(data = hcm1723[,-4], IP = 1, xreg = "cumcases",
                        regtype = "gaussian",alpha = NULL, sbar = NULL,
                        method = "deterministic", nsim = 1000,
                        family = "gaussian", link = "identity")

Code

plotdata(hcm1723[,-4])

tSIR model fitting for the whole period

Code

hcm1723 %>%
ggplot() +
  geom_line(aes(x = time ,group = 1, y = hcm_hfmd1723$res$mean,
                linetype = "model fitted"))+
  geom_line(aes(x= time, group = 1, y = cases,
                linetype = "cases reported"))+
  # geom_bar(aes(x= as.character(date), y = cases),stat = "identity")+
  theme_minimal()+
  labs(y = "Cases",x="Time")+
    scale_linetype_manual(values = c("cases reported" = "dashed",
                                   "model fitted" = "solid"),
                        name="Analysis Type")+
  geom_vline(xintercept = 2021.491,
             alpha = 0.25,col = "blue",lwd = 0.5)+
  geom_vline(xintercept = 2021.491+(7/365*4)*4,
             alpha = 0.25,col = "blue",lwd = 0.5)

May be the covid quarantine effect the performance of model. Tried to fit before and after covid quanrantine

Before quarantine

Code

before <- hcm1723[,-4] %>%  filter(time <= 2021.491)
hcmbefore <- runtsir(data = before, IP = 1, xreg = "cumcases",
                        regtype = "gaussian",alpha = NULL, sbar = NULL,
                        method = "deterministic", nsim = 1000,
                        family = "gaussian", link = "identity")

Code

before %>%
ggplot() +
  geom_line(aes(x = time ,group = 1, y = hcmbefore$res$mean,
                linetype = "model fitted"))+
  geom_line(aes(x= time, group = 1, y = cases,
                linetype = "cases reported"))+
  # geom_bar(aes(x= as.character(date), y = cases),stat = "identity")+
  theme_minimal()+
  labs(y = "Cases",x="Time")+
    scale_linetype_manual(values = c("cases reported" = "dashed",
                                   "model fitted" = "solid"),
                        name="Analysis Type")

After quarantine

Code

after <- hcm1723[,-4] %>%  filter(time >= 2022.189)
hcmafter <- runtsir(data = after, IP = 1, xreg = "cumcases",
                        regtype = "gaussian",alpha = NULL, sbar = NULL,
                        method = "deterministic", nsim = 1000,
                        family = "gaussian", link = "identity")

Code

after %>%
ggplot() +
  geom_line(aes(x = time ,group = 1, y = hcmafter$res$mean,
                linetype = "model fitted"))+
  geom_line(aes(x= time, group = 1, y = cases,
                linetype = "cases reported"))+
  # geom_bar(aes(x= as.character(date), y = cases),stat = "identity")+
  theme_minimal()+
  labs(y = "Cases",x="Time")+
    scale_linetype_manual(values = c("cases reported" = "dashed",
                                   "model fitted" = "solid"),
                        name="Analysis Type")

1.5 Attack rate

Code

w23 <- slide_age(time1 = df23$adm_date,
                  age1 =  df23$age1,
                  w1 = 7, s1=7)

Code

pop <- readRDS("D:/OUCRU/hfmd/data/count_dangky.rds")
pop_a <- pop %>% group_by(birth_month, birth_year) %>%
  summarise(n=sum(n)) %>% arrange(birth_year)

colnames(pop_a) <- c("m","y","n")

pop_a$dob <- str_c(pop_a$y,pop_a$m,sep = "-") %>% ym()

##
hfmd23 <- df1 %>% filter(year(adm_week) == "2023") %>%
  filter(!is.na(adm_week) ) %>%
  count(adm_week)

hfmd23$week <- 1:length(hfmd23$adm_week)
hfmd23$week <- ifelse(hfmd23$week == 53,52,hfmd23$week)

hfmd23$n2 <- ifelse(hfmd23$week == 52, sum(hfmd23$n[hfmd23$week==52]), hfmd23$n)

hfmd23 <- hfmd23[-53,]

##
generator <- odin::odin({
  deriv(N) <- r * N * (1 - N / K)
  initial(N) <- N0

  N0 <- user(1)
  K <- user(100)
  r <- user()
})

mod <- generator$new(N0 = 9381717,r = 7.4/52,K= 9456700)
y3 <- mod$run(1:52)


##
dta23 <- model$df %>% filter(year == 2023)
hcm23 <- data.frame(time = dta23$time,
                    cases = hfmd23$n,
                    births = dta23$fit,
                    pop = y3[,2])

hcm_hfmd23 <- runtsir(data = hcm23, IP = 1, xreg = "cumcases", regtype = "gaussian",
                     alpha = NULL, sbar = NULL, method = "negbin", nsim = 100,
                     family = "gaussian", link = "identity")

[1] "gaussian regressian failed -- switching to loess regression"

           alpha        mean beta         mean rho         mean sus
        6.90e-01         7.62e-05         1.03e+00         9.46e+04
prop. init. sus. prop. init. inf.
        7.54e-03         6.05e-06

Code

## recaculate attack rate

time1 = df1$adm_date
age1 =  df1$age1
dob = pop_a$dob
n = pop_a$n

dft <- data.frame(time1,age1) %>%
  filter(!is.na(time1) & !is.na(age1)) %>%
  arrange(time1)


dft$agr=as.factor(cut(dft$age1, c(0,0.5,
                                  1,1.5,
                                  2,2.5,
                                  3,3.5,
                                  4,4.5,5,100), right=TRUE ))
levels (dft$agr) = c("0-0.5", "0.5-1", "1.0-1.5",
                     "1.5-2","2-2.5","2.5-3",
                     "3-3.5","3.5-4","4-4.5",
                     "4.5-5","5+")

sus_pop <- data.frame(dob = dob, n = n)

out_total <- data.frame()
dateaa <- hfmd23$adm_week+3

sus_pop <- data.frame(dob = dob, n = n)

for (i in 1:52){
  sus_pop$age <- interval(sus_pop$dob, dateaa[i]) / years(1)

  sus_pop$agr=as.factor(cut(sus_pop$age, c(0,0.5,
                                           1,1.5,
                                           2,2.5,
                                           3,3.5,
                                           4,4.5,5,100), right=TRUE ))
  levels (sus_pop$agr) = c("0-0.5", "0.5-1", "1.0-1.5",
                           "1.5-2","2-2.5","2.5-3",
                           "3-3.5","3.5-4","4-4.5",
                           "4.5-5","5+")
  outcum <- sus_pop %>% group_by(agr) %>%
    summarise(n = sum(n)) %>%
    as.data.frame()
  outcum$date <- rep(dateaa[i],nrow(outcum))
  out_total <- rbind(out_total,outcum)
}

deno <- out_total %>%
  pivot_wider(names_from = agr, values_from = n) %>% as.data.frame()

casss <- wwww$wdat

casss$agr=as.factor(cut(casss$age, c(0,0.5,1,1.5,2,2.5,
                                     3,3.5,4,4.5,5,100), right=TRUE ))
levels (casss$agr) = c("0-0.5", "0.5-1", "1.0-1.5",
                       "1.5-2","2-2.5","2.5-3",
                       "3-3.5","3.5-4","4-4.5",
                       "4.5-5","5+")

casss <- casss %>% group_by(date,agr) %>%
  count() %>% pivot_wider(names_from = agr, values_from = n) %>% as.data.frame()

casss <- casss[,-13]
casss <- replace(casss,is.na(casss), 0)
casss <- casss[,c(1:10,12,11)]

atkr <- data.frame()

atkr <- rbind(atkr,as.numeric(casss[1,-1])/as.numeric(deno[1,-1]))
for (i in 1:51){
  new <- as.numeric(casss[i+1,-1])/(as.numeric(deno[i+1,-1]) - as.numeric(casss[i,-1]))
  atkr <- rbind(atkr,new)
}
atkr <- cbind(deno$date,atkr)

colnames(atkr) <- colnames(deno)
atkr <- replace(atkr,is.na(atkr), 0)

atk_plot <- atkr %>% pivot_longer(cols=c("0-0.5", "0.5-1", "1.0-1.5",
                                         "1.5-2","2-2.5","2.5-3",
                                         "3-3.5","3.5-4","4-4.5",
                                         "4.5-5","5+"),
                                  names_to= 'agr',
                                  values_to='atk') %>% as.data.frame()

Code

beta <- hcm_hfmd23$contact
beta[52,] <- beta[51,]

atk <- ggplot(atk_plot, aes(x=as.character(date), y=agr, fill = atk)) +
  geom_raster()+
  scale_fill_gradient(low="yellow", high="red",
                        name = "Attack rate")+
  scale_y_discrete(limits=rev)+
  theme_minimal()+
  labs(y = "Age group")+
  theme(axis.title.x = element_blank(),
        axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        axis.text.y = element_text(size = 8),
        legend.text = element_text(size=4),
        legend.title = element_text(size=7))

c <- ggplot(data = hcm23 %>%
  select(time,cases) %>% mutate(date = hfmd23$adm_week + 3)) +
  geom_line(aes(x= as.character(date), group = 1, y = cases,
                linetype = "cases reported"))+
  # geom_bar(aes(x= as.character(date), y = cases),stat = "identity")+
  geom_line(aes(x = as.character(date) ,group = 1, y = hcm_hfmd23$res$mean,
                linetype = "model fitted"))+
  geom_line(aes(x = as.character(date),
                y= beta$beta*15000000,
                group =1,col = "contact rate"),alpha = 0.3,inherit.aes = FALSE) +
  scale_color_manual(values = c("contact rate" = "blue"),
                     name="Analysis Type")+
  scale_linetype_manual(values = c("cases reported" = "dashed","model fitted" = "solid"),
                        name="Analysis Type")+
  scale_y_continuous(
    name = "Cases",
    # Add a second axis and specify its features
    sec.axis = sec_axis(~./15000000, name="Contact rate")
  )+
  theme_minimal()+
  theme(axis.title.x = element_blank(),
        axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        legend.title= element_blank(),
        legend.position = "inside",
        legend.position.inside =  c(.15, .60))+
  geom_vline(xintercept = as.character("2023-05-24"))+
  geom_vline(xintercept = as.character("2023-09-06"))+
  annotate(
    geom = "text", x = as.character("2023-05-31"), y = 3500,
    label = "Summer break", hjust = 0, vjust = 1, size = 3
  )

hmc <- ggplot(data=w23$wdat, aes(x=date, y=age)) +
  stat_density(
    aes(fill = after_stat(density)),
    geom = "raster",
    position = "identity"
  )+
  scale_fill_gradient(low="yellow", high="red")+
  geom_line(data = ch,aes(x = date,y = c0),col = "white",
            group = 1,lwd = 0.5,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c1),col = "white",
            group = 1,lwd = 0.5,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c2),col = "white",
            group = 1,lwd = 0.5,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c3),col = "white",
            group = 1,lwd = 0.5,alpha = 0.5)+
  geom_line(data = ch,aes(x = date,y = c4),col = "white",
            group = 1,lwd = 0.5,alpha = 0.5)+
  scale_y_reverse(lim= rev(c(0,5)))+
  theme_minimal()+
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1,size = 8),
        legend.text = element_text(size=4),
        legend.title = element_text(size=7))

Code

c/
atk/
hmc
